NC300F-2015 Vertical Die Spotting Press


Vertical NC300F-2015 180° mold spotting press is widely used in adjustment or verification of mold or die. With spotting force: 300T, working bench: 2000×1500mm, it is especially fit for middle and large mould. Compared with traditional die tryout press, vertical NC300F-2015 vertical die spotting press adopts electric magnetic chuck, thus it can save time and can improve work efficiency. The moulds can be turned around 0-180. Additionally, it is easy and reliable to use NC300F-2015 180° mold spotting press with computer control and man/machine interface.


  • 1. Core hydraulic pressure source confirms the operation of each hydraulic cylinder equipped onto metal die.
  • 2. Low energy consumption
    Vertical NC300F-2015 180° mold spotting press will greatly reduce energy consumption and exhaust heat, compared with traditional methods through inverter control of the main electric motor.
  • 3. Perfect safety facilities.
    There are many safety facilities to ensure men’s security, like safety grating, anti-falling oil cylinder, locking cylinder and safety supporting frame and other prevention facilities.
  • 4. High precision
    Vertical NC300F-2015 180° mold spotting press has high precision because hydraulic system adopts vibration-absorption facilities which will reduce hydraulic impact.
  • 5. Hydraulic system is equipped with low-pressure protection facilities, to prevent damages caused by collision and insertion.
  • 6. The 180° mold spotting press is equipped with security facilities.
Anti-falling facilities Locking facilities
Safety supporting facilities Rating protection

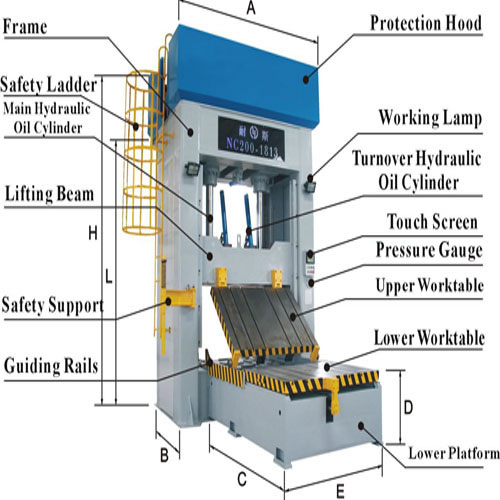

Front viewSide view


Model Vertical NC 300F-2015 180° mold spotting press
Max spotting force(T) 300
Max lifting force(T) 80
Die opening space(mm) 1800
Size of working bench(mm) 2000×1500
Bearing capacity of upper working bench(T) 8
Bearing capacity of lower working bench(T) 20
Suction force of upper magnetic disk(T) 180
Suction force of lower magnetic disk(T) 80
Fast up/down speed(mm/s) 70/70
Slow up/down speed(mm/s) <25
Eject capacity(T) 5
Eject stroke(mm) 100
Out stroke of lower working bench(mm) 3200
Motor power(KW) 22
Total height of machine(H)(mm) 6250
Land area of machine(mm) 6600×5800
Weight of machine(T) 35
