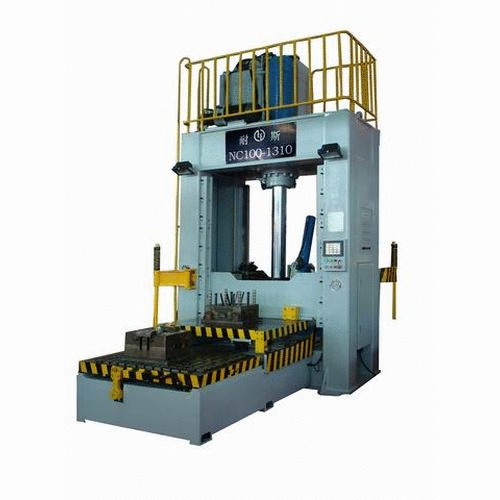

NC100-1310 Vertical Die Spotting PressRead More
Description:
NC100-1310 vertical mold spotting press is mainly applied in repair or verification of plastic die, hardware molding die. Its maximum spotting force is 100T and working bench is 1300×1000mm. The mould can be turned from 0-180. Computer control and man/machine interface operation make it easy, quick, safe, and reliable to use NC100-1310 vertical mold spotting press. Our company is a professional and reliable mold spotting press machine supplier in China because of expertise and technology.
Types of die spotting machine:
Application:
NC100-1310 vertical mold spotting press is mainly applied in repairing and assembling of various plastic mould, or metal die-casting die.
Features:
- 1. Easy and fast operation
NC100-1310 vertical mold spotting press uses PLC control, and human-machine interface operation, which makes work easy, convenient and fast. - 2. Flatness and small deformation
Upper and lower working benches and guide rails of pressure-plate die spotting machine are made from nodular cast iron and adopt manual scraping for surface processing, with sound flatness, high precision and small deformation. - 3. Safe and energy-saving
NC100-1310 vertical mold spotting press supports electric control permanent magnet. It can ensure continuous magnet supply, which is safe and energy-saving. - 4. Perfect safety facilities
There are complete safety facilities to ensure man’s security, like safety grating, anti-falling oil cylinder, locking cylinder and safety supporting frame and other prevention facilities. - 5. High precision
The NC100-1310 vertical mold spotting press uses unique vibration absorption system and the hydraulic impact is minimized, which ensures equipment precision. - 6. The machine has low-voltage protection function and has fast pressing function, which enables good red lead pressing effect.
- 7. NC100-1310 vertical mold spotting press is equipped with security device.
Components:
Front viewSide viewParameter:
Model | NC100-1310 vertical vertical mold spotting press |
Max spotting force(T) | 100 |
Max lifting force(T) | 40 |
Die opening space(mm) | 1300 |
Size of working bench(mm) | 1300×1000 |
Bearing capacity of upper working bench(T) | 3 |
Bearing capacity of lower working bench(T) | 8 |
Suction force of upper magnetic disk(T) | 55 |
Suction force of lower magnetic disk(T) | 40 |
Fast up/down speed(mm/s) | 70/70 |
Slow up/down speed(mm/s) | <25 |
Eject capacity(T) | 3 |
Eject stroke(mm) | 100 |
Out stroke of lower working bench(mm) | 2200 |
Motor power(KW) | 7.5 |
Total height of machine(H)(mm) | 4250 |
Land area of machine(mm) | 4300×3600 |
Weight of machine(T) | 12 |
