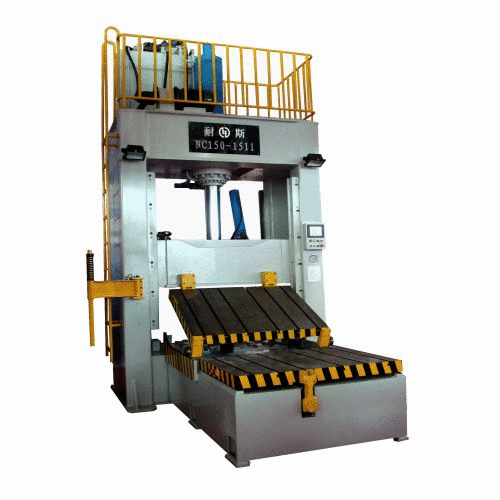

NC150-1511 Magneto electric Die Spotting PressRead More
Description:
NC150 hydraulic die tryout press is mainly applied in repair or verification of plastic die, hardware molding die. The mould can be turned from 0-180. On the basis of die spotting press, the machine adopts electric magnetic chuck, thus it greatly improves work efficiency. Computer control and man/machine interface operation makes it easy, quick, safe, and reliable to use the machine. With max spotting force 150T, working bench 1500×1100mm NC150 hydraulic die tryout press is fit for middle and large die.
Types:
Features:
- 1. Safe and energy-saving
NC150 hydraulic die tryout press supports electric control permanent magnet. It can ensure continuous magnet supply, which is safe and energy-saving. - 2. Perfect safety facilities
There are completer safety devices to ensure man’s security, like safety grating, anti-falling oil cylinder, locking cylinder and safety supporting frame and other prevention facilities - 3. High precision
NC150 hydraulic die tryout press vibration-absorption facilities, to reduce hydraulic impact and ensure precision of facilities. - 4. No damage
NC150 hydraulic die tryout press is equipped with low-pressure protection facilities, to prevent damages caused by collision and insertion. - 5. Good red lead can be achieved because of high speed.
- 6. Easy and reliable operation
It is easy, quick, safe, and reliable to operate NC150 hydraulic die tryout press with computer control and man/machine interface.
Components:
Front viewSide viewParameter:
Model | NC150 hydraulic die tryout press |
Max spotting force(T) | 150 |
Max lifting force(T) | 50 |
Die opening space(mm) | 1400 |
Size of working bench(mm) | 1500×1100 |
Bearing capacity of upper working bench(T) | 5 |
Bearing capacity of lower working bench(T) | 10 |
Suction force of upper magnetic disk(T) | 70 |
Suction force of lower magnetic disk(T) | 55 |
Fast up/down speed(mm/s) | 70/70 |
Slow up/down speed(mm/s) | <25 |
Eject capacity(T) | 3 |
Eject stroke(mm) | 100 |
Out stroke of lower working bench(mm) | 2400 |
Motor power(KW) | 11 |
Total height of machine(H)(mm) | 5150 |
Land area of machine(mm) | 4700×4000 |
Weight of machine(T) | 18 |
