3-Axis Gun Drilling Machine (NCS Series)
Description:
- NCS series includes 7 types of gun drilling machine, NCS-800, NCS-1000, NCS-1300, NCS-1300F, NCS-1500, NCS-1600 and NCS-2000.
- NCS series 3-spindle gun hole machine can be widely applied in mould processing of water channel hole, punch hole, hot runner hole, hydraulic valve, distributor, heat exchanger plate and others of mould. As we absorb the essence of similar products at home and abroad, our company is a leading manufacturer of gun drilling machine in China. Our products have been exported to Brazil, Turkey and other countries.
Features:
- 1. NCS series 3-spindle gun hole machine adopts imported linear guide rail and ball screw so as to ensure the processing precision.
- 2. The stand column, pedestal, slide platform, work platform and other main components of machine tools are made of castings with low deformation and high precision.
- 3. Large scope of application
The processing scope is large and maximum drill depth 2000mm. - 4. The wide work space will conducive to clamping and processing of large workpiece.
- 5. NCS series 3-spindle gun hole machine is featured by steady performance and simple operation as it adopts MITSUBISHI servo numerical control system.
Accessories for 3-spindle gun hole machine include standard fittings and available accessories. Standard accessories cover transformer, main shaft etc. If you need more information, please refer toNCS Series_pdf.
Parameter:
Model 3-spindle gun hole machine | NCS-800 | NCS-1000 | NCS-1300 | NCS-1300F | NCS-1500 | NCS-1600 | NCS-2000 |
Bore of drill hole(mm) | 3-30 | 3-30 | 3-30 | 3-30 | 3-35 | 3-35 | 3-35 |
One-off drill hole(mm) | 800 | 1000 | 1300 | 1300 | 1500 | 1600 | 2000 |
Dimension of work platform(mm} | 700x900 | 800x1200 | 950x1400 | 1000x1700 | 1200x1700 | 1400x2200 | 1400x2600 |
X axis stroke(mm) | 800 | 1000 | 1300 | 1600 | 1500 | 2100 | 2500 |
Y axis stroke(mm) | 800 | 800 | 1000 | 1000 | 1200 | 1200 | 1400 |
Z axis stroke (mm) | 850 | 1050 | 1350 | 1350 | 1550 | 1650 | 2050 |
Rapid feeding (mm/min) | 3000 | 3000 | 4000 | 4000 | 5000 | 5000 | 5000 |
Load weight of work platform(kg) | 5000 | 5000 | 7000 | 8000 | 8000 | 12000 | 15000 |
Net weight of equipment (kg) | 8000 | 95000 | 11000 | 12000 | 13000 | 17000 | 22000 |

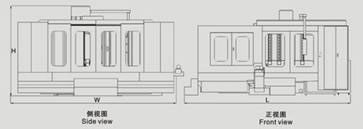

External size of machine tool(mm) | 4700x2700 | 5000x3000 | 5400x4100 | 5400x4800 | 6100x4500 | 6300x5800 | 7000x6200 |
Total power(kw) | 30 | 30 | 35 | 35 | 35 | 40 | 42 |
Numerical control system | MITSUBISH | MITSUBISH | MITSUBISH | MITSUBISH | MITSUBISH | MITSUBISH | MITSUBISH |
