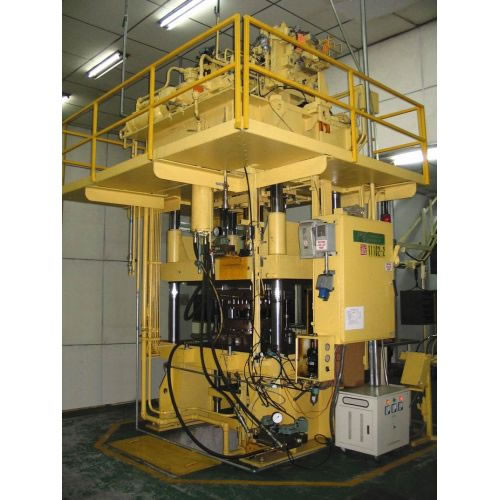

Single-Action Hydraulic Sheet Metal Drawing Press (NCB Series Deep Drawing Press)
Description:
NCB series single-action hydraulic sheet metal drawing press or thin-strip tensile testing machine is mainly used to process thin metal parts, like stretching bending, flanging, and pressing and punching, also is used in hot pressing of nonmetals. NCB series single-action deep drawing press is classified into various types, NCB-200, NCB-315, NCB-500, NCB-630, NCB-800, NCB-1000.
Features of the Hydraulic Sheet Metal Drawing Press:
- 1. Upper and lower working benches are made from nodular cast iron, with small deformation.
- 2. Hydraulic system supports vibration-absorption facility to reduce hydraulic impact and ensure high precision of facility.
- 3. Strong rigidity and small deformation
Single-action deep drawing press has advantages of strong rigidity and small deformation as it adopts welding frame structure after going through aging treatment. - 4. It is easy to operate the machine as it uses PLC control and human-machine interface.
- 5. It is convenient to operate single-action deep drawing press as it is equipped with microining device and device for location control.
Typical Machines:
NCB-200 Hydraulic Sheet Metal Drawing Press
Model | NCB-200 | ||
Total pressure(KN) | 2000 | ||
Return force(KN) | 600 | ||
Hydraulic cushion pressure(KN) | 630 | ||
Blanking and buffering power(KN) | 1000 | ||
Adjustable distance of buffering opening(mm) | 200 | ||
Stroke of sliding block(mm) | 710 | ||
Largest stroke of hydraulic cushion(mm) | 350 | ||
Largest working pressure of liquid(Mpa) | 20 | ||
Opening space(mm) | 1200 | ||
Velocity of Sliding block |
Idle descent(mm/s) | 200 | |
Operation(mm/s) | 10 | ||
Return(mm/s) | 200 | ||
Velocity of Hydraulic cushion |
Ascend(mm/s) | 100 | |
Return(mm/s) | Random | ||
Size of working bench |
Left to right(mm) | 1500 | |
Front to aft(mm) | 1200 | ||
Effective size of hydraulic cushion |
Left to right(mm) | 800 | |
Front to aft(mm) | 500 | ||
Size of knockout hole(mm) | Ф36 | ||
External size | Height above ground(mm) | <5300 | |
Height below ground(mm) | 2000 | ||
Floor area |
Left to right(mm) | 3300 | |
Front to aft(mm) | 2000 | ||
Precision of repeated positioning(mm) | - | ||
Stroke of lower working bench(mm) | - | ||
Bearing capacity of moving-our working bench(T) | 10 | ||
Motor power(kw) | 22 | ||
Bearing capacity of working bench(T) | 4 | ||
Weight of machine tool(T) | 32 |
NCB-1000 Hydraulic Sheet Metal Drawing Press
Model | NCB-1000 single-action deep drawing press | ||
Total pressure(KN) | 10000 | ||
Return force(KN) | 3000 | ||
Hydraulic cushion pressure(KN) | 3150 | ||
Blanking and buffering power(KN) | 5000 | ||
Ajustable distance of buffering opening(mm) | 300 | ||
Stroke of sliding block(mm) | 1500 | ||
Largest stroke of hydraulic cushion(mm) | 450 | ||
Largest working pressure of liquid(Mpa) | 25 | ||
Opening space(mm) | 2300 | ||
Velocity of Sliding block |
Idle descent(mm/s) | 200 | |
Operation(mm/s) | 5~15 | ||
Return(mm/s) | 200 | ||
Velocity of Hydraulic cushion |
Ascend(mm/s) | 100 | |
Return(mm/s) | Random | ||
Size of working bench |
Left to right(mm) | 4000 | |
Front to aft(mm) | 2800 | ||
Effective size of hydraulic cushion |
Left to right(mm) | 2800 | |
Front to aft(mm) | 1800 | ||
Size of knockout hole(mm) | Ф40 | ||
External size | Height above ground(mm) | 7100 | |
Height below ground(mm) | 2500 | ||
Floor area |
Left to right(mm) | 7100 | |
Front to aft(mm) | 6900 | ||
Precision of repeated positioning(mm) | <0.08 | ||
Stroke of lower working bench(mm) | 3300 | ||
Bearing capacity of moving-our working bench(T) | 60 | ||
Motor power(kw) | 170 | ||
Bearing capacity of working bench(T) | 25 | ||
Weight of machine tool(T) | 210 |
