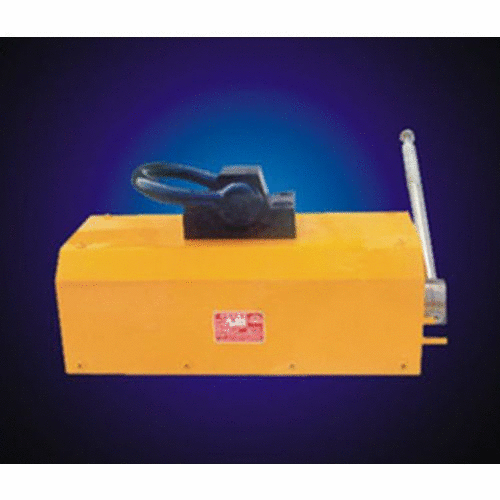

Permanent Magner Lifter Machine
Description:
- The permanent magner lifter is widely applied in mechanical manufacturing, mold production, storage and transportation etc. It adopts rare earth permanent magnet NdFeB (neodymium iron boron) as magnetic source.
- The permanent magner lifter is classified into seven types, including DM-100, DM-300, DM-600, DM-1000, DM-2000, DM-3000 and DM-5000.
Features:
- 1. Low electricity consumption
It has low electricity consumption as permanent magner lifter supports rare earth permanent magnet NdFeB (neodymium iron boron) as magnetic source. - 2. Strong magnetic power
- 3. Safety and reliability
- 4. Convenient operation
It is convenient to operate permanent magner lifter because of simple design.
Parameter:
Type | Size (mm) (length×width×height) |
Rated lifting weight(kg) | Net weight(kg) | |
Flat workpiece | Cylindrical workpiece(diameter mm) | |||
DM-100 | 96×62×95 | 100 | 50 (φ20-50) | 3.4 |
DM-300 | 166×95×145 | 300 | 150 (φ50-300) | 12.5 |
DM-600 | 216×116×155 | 600 | 300 (φ70-400) | 20 |
DM-1000permanent magner lifter | 266×145×180 | 1000 | 500(φ75-450) | 37.5 |
DM-2000 | 364×180×220 | 2000 | 1000(φ100-600 ) | 77.6 |
DM-3000 | 418×225×320 | 3000 | 1500(φ100-800) | 152.4 |
DM-5000 | 693×363×355 | 5000 | 2500(φ100-1000) | 450 |
