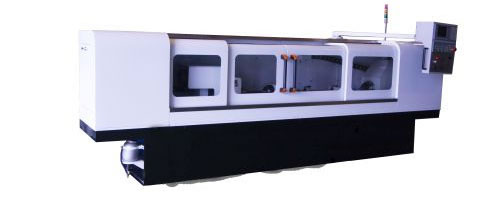

Single Shaft Gun Drilling Machine (NCSD)
Description:
The single axis gun drilling machine is widely used in drilling and reaming, tapping etc. It has a wide application in car industry, locomotives, shipbuilding, aviation and engineering mechanics. NCSD-1000 single axis gun drilling machine with 1000mm drilling depth is an automatic drilling machine which absorbs modern industry advanced technology.
Advantages:
- 1. The single axis gun drilling machine adopts servo control system.
- 2. Mechanical transmission adopts internal circulation ball screw with high precision.
- 3. The machine is equipped with deep hole cutting cooling system which can supply different flow rate and pressure according to size of drill.
- 4. The machine reaches an advanced level among other drilling machine in performance, precision, scale of processing, operation and work efficiency.
- 5. The single axis gun drilling machine adopts stepless speeding regulating, which ensure the large sale of speeding regulating and reasonable power configuration.
Parameter:
Model | NCSD-1000 | |
Index | unit | |
Diameter scope of gun drill (mm) | mm | 3~22(single shaft) |
Drill hole depth | mm | 1000 |
Distance of drill pipe box (Z axis) | mm | 1050 |
Maximum speeding rate of main shaft | r /min | 6000 |
Rotation speed of workpiece | r /min | 200 |
Speed of main shaft | mm/min | 0~1000 |
Motor power of Z shaft | kW | 1.3 |
Motor power of main shaft | kW | 5.5 |
Motor power of workpiece rotation | kW | 0.75 |
Diameter of the biggest workpiece | mm | Φ72 |
Length scale of processing parts | mm | 10-1100 |
Pressure scale of chipping cooling liquid | MPa | 3~10.5 |
Flow scale of chipping cooling liquid | L/min | 0~32 |
Size of drilling machine | mm | 4600×1800 |
Maximum height of single shaft deep hole drilling machine | mm | 1800 |
Total power of drilling machine | kW | 25 |
Total weight of the machine | ton | 3 |
CNC device | new digital control system |
Standard fittings:
Transformer Chip cleaner Oil temperature control machineMain shaft
Available accessories:
Guide sleeveTool sharpening machine Chipping oil Deoiler Rubber sheath Drill
