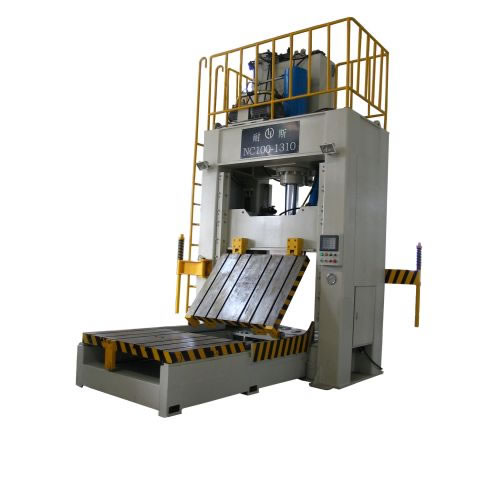

Vertical Die Spotting Press (Small Model)Read More
Description:
The die spotting press machine is mainly used to process die. The small model of die spotting press includes NC-30-0806, NC50-1007, NC70-1007, NC100-1310, NC120-1310, and NC150-1511and NC200-1813. With spotting force within 200T, they can meet your needs.
Types:
| NC30-0806 | NC50-1007 | NC70-1007 vertical die spotting machine | NC100-1310 |
| NC120-1310 | NC150-1511 (Magnetic electric die spotting press) | NC200-1813 | |
Application:
The die spotting press machine is widely applied for verification of plastic die and hardware die. The machine replaces the traditional simple fitting of knocking by copper bar because of its fast and automation operation, which greatly improves efficiency and precision of die spotting press.
Features:
- 1. Complete safety facilities.
The die spotting press machine is equipped with safety grating, anti-falling oil cylinder, locking cylinder and safety supporting frame and other prevention facilities to ensure human safety. - 2. High precision
Hydraulic system adopts vibration-absorption facilities to ensure high precision. - 3. High efficiency
The PLC control, man/machine interface, electric cabinet makes it easy and fast to operate die spotting press machine. Thus it can ensure the high efficiency.
Parameter:
| Model | NC150 hydraulic die tryout press |
| Max spotting force(T) | 150 |
| Max lifting force(T) | 50 |
| Die opening space(mm) | 1400 |
| Size of working bench(mm) | 1500×1100 |
| Bearing capacity of upper working bench(T) | 5 |
| Bearing capacity of lower working bench(T) | 10 |
| Suction force of upper magnetic disk(T) | 70 |
| Suction force of lower magnetic disk(T) | 55 |
| Fast up/down speed(mm/s) | 70/70 |
| Slow up/down speed(mm/s) | <25 |
| Eject capacity(T) | 3 |
| Eject stroke(mm) | 100 |
| Out stroke of lower working bench(mm) | 2400 |
| Motor power(KW) | 11 |
| Total height of machine(H)(mm) | 5150 |
| Land area of machine(mm) | 4700×4000 |
| Weight of machine(T) | 18 |
