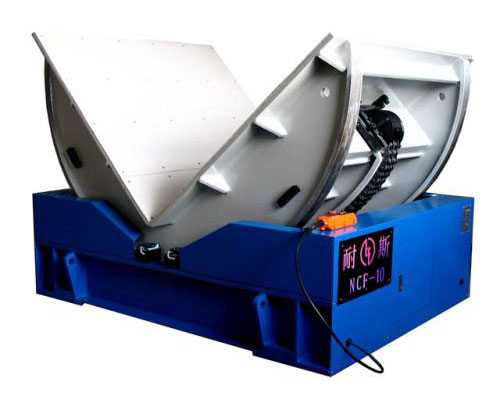

NCF-10 Mold Turnover Machine
Description:
The mechanical mould tilter is mainly used for dislocation and turning-over of heavy object, to make goods change between vertical and horizontal direction. It is widely applied in mold producing industry, injection industry and die-casting industry. For vertical die press machine, NCF-10 mechanical mould tilter is inseparable auxiliary equipment. With rolling capacity 10T, it is a desirable product for adjusting of large mold.
Features:
- 1. It is easy to use and to operate.
- 2. Safety and Reliability
NCF-10 mechanical mould tilter is characterized by safety and reliability, stability, which avoids the disadvantage of manual turnover, like insecurity, which makes the turnover easy and fast. - 3. It has compact structure and small space occupation
- 4. NCF-10 mechanical mould tilter can lock automatically when power is off.
Parameter:
Model | NCF-10 mechanical mould tilter |
Rolling capacity | 10T |
Time for rolling by 90 | 25s |
Size of bench surface | 1400x1270mm |
Height of bench surface | 700mm |
External size | 1400x1900x1980mm |
Central size | 50mm |
Motor power | 3.0kw |
Weight of machine tool | 3.8T |
